MLT - LECTEUR MAINS LIBRES INOX R11A/EM1 - LECTURE SEULE INTERFACE TTL

Extrait Notice installation Extrait Notice technique

Installation procedure

Hands free reader: MLT - R11 Variant / ISO2 & Wiegand

OVERVIEW
Characteristics:
Power supply: ................ 12 VDC (12 min ? 15 max)
Consumption: ................. 250 to 900mA depending on calibration
Communication: ............. ISO2 or Wiegand, Open collector TTL lines.
Pin out: ........................... 6 points connector
Reading distance:
Credit card tags (CCT type): max. 70 cm (*)
High distance tags (TVL type): max. 100 cm (*)
(*) Performance for a non perturbed environment.

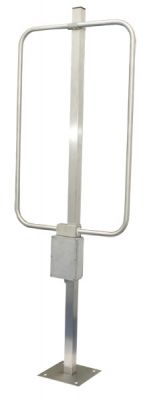

Mechanic:
Antenna: Inox tube. Dimension 83 x 53 cm
Mast: Inox ? square section 40 x 40 mm ? height : 150 cm
Base: 20 x 20 cm, 4 oblong holes ø9 x 18 mm for fixation.
Electronic case: IP67 waterproof aluminum case. 171 x 121 x 55 mm.

Features
?
?

Manual calibration to get the best possible performances according to the reader environment.
Possible to add an extra LED and buzzer to give detection / reading information.

Recommendations / Limits
?

If 2 (or more) readers are installed too close, it can cause a coupling. The readers will not be able to
read tags or a tag will be read by each reader at the same time.
? Do not install the reader near to a closed conductor circuit.
? Do not install the reader on a metallic support
? Do not install the reader close to a metallic ground. In this case, respect the minimum distance,
between the antenna and the ground, which are 20 cm with the side of the antenna and 50 cm with
the back of the antenna.
? Do not forget to connect the 0V to a clean ground.
(See the installation examples at the end of this document)

Unfavorable cases
Avoid installing the reader close to perturbing electromagnetic field like:
?
?
?
?
?

Informatics data transmission cables
Energy transmission cables
Screen display
Equipment with no EMC conformity
Power supply units

© STId 2005 ? NI002A06

P. 1 / 6

Installation procedure

Hands free reader: MLT - R11 Variant / ISO2 & Wiegand

Wiring / Calibration
Wiring
Connect the power supply (0V, +12V) and the data lines to the host.
The maximum distance between the host and the reader is 100m.
Recommended cables:
1 pair 6/10° until 30 meters (98,43 ft).
2 pairs 6/10° until 60 meters (196.86 ft).
3 pairs 6/10° until 100 meters (328.10 ft).
OR
1 pair 9/10° until 50 meters (165.05 ft).
2 pairs 9/10° until 100 meters (328.10 ft).
Caution: If the HOST does not have pull up resistor on its input, it is necessary to add them on the reader.

Pull-up resistors wiring

ISO2 (2x)
0V
+12V
Code
Data
Clock

Wiegand (3x)
0V
+12V
Data 0
Data 1
Clock

Scan (non connected)

Scan (non connected)

+12V
10 k
10 k 10 k

Code
Data
Clock

Main board view
Consumption measure
Connect here your multimeter

Ground jumper

J1
J2
J3
J4

External LED
20 mA max

+
External buzzer +
100mA max

Internal LED activation

Adjustable capacitor (fine calibration)

ON
OFF

© STId 2005 ? NI002A06

- +
P. 2 / 6

Installation procedure

Hands free reader: MLT - R11 Variant / ISO2 & Wiegand

First use
?
?
?
?
?

Fit the reader at the desired place
First connect the power supply
Present a tag to the reader
Check the good detection (if the distance is not correct, modify the calibration)
To control the detection, use the LED on the main board.
Connect the data lines

Calibration
The reader is calibrated before delivering, but it is possible that the reader need to be re-calibrated to adjust
to its environment.
?
?
?
?

Connect a voltmeter (DC) to check the consumption (see the main board view for the voltmeter
connection). Consumption = measure x 10
Usually, you get the best possible performances when the reader's consumption is maximum
(usually maximum is around 500 mA (measure 50mV)).
To correctly calibrate the reader you need to find the right capacitance value (jumper J1, J2, J3, J4
and adjustable capacitor). For more details, check the scheme and the algorithm above.
The ground jumper can be used to reduce perturbations.

consumption

Best calibration

Use
the
adjustable
capacitor to make a fine
calibration

J1: MSB
J2
J3
J4: LSB

0
0
0
0

0
0
0
1

0
0
1
0

0
0
1
1

1
1
1
1

0
1
0
0

Capacitance value

Binary counting

J1
J2
J3
J4

0
0
0
0

0
0
0
1

0
0
1
0

0
0
1
1

0
1
0
0

0
1
0
1

0
1
1
0

0
1
1
1

1
0
0
0

1
0
0
1

1
0
1
0

1
0
1
1

1
1
0
0

1
1
0
1

1
1
1
0

1
1
1
1

Decimal value

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

© STId 2005 ? NI002A06

P. 3 / 6

Installation procedure

Hands free reader: MLT - R11 Variant / ISO2 & Wiegand
Calibration algorithm

The goal of this algorithm is to find the best jumper setting by a dichotomy method.
- If the consumption increase when capacitance value is increased, the maximum
consumption value has been already reached. So you have to decrease the total
capacitance value by modifying the jumper setting.
- If the consumption decrease when capacitance value is increased, the maximum
consumption value has not been already reached. So you have to increase the total
capacitance value by modifying the jumper setting

Turn clcokwise the adjustable capacitor
(You add capacitor)

Does Reader
consumption
increases ?
YES

NO
Maximum has been reached

Maximum has not been reached

Increase the jumper setting.
You add capacitance.

Decrease the jumper setting.
You remove capacitance.

Replace the adjustable capacitor to its middle position

During the algorithm process, if you go back to the last jumper setting, it is because you are near the best
calibration setting. Try, with the adjustable capacitor, to find the maximum consumption (try it with the 2
different jumper setting).

© STId 2005 ? NI002A06

P. 4 / 6

Installation procedure

Hands free reader: MLT - R11 Variant / ISO2 & Wiegand
Optimization
If you do not have the best performances, some simple tips could help you to get them.
?
?
?
?
?
?

Verify the wiring
Analyze the environment to find possible causes of perturbation
Verify that the 0V is connected to a clean ground
Measure the power supply. In some cases, the power supply doesn't succeed to drive enough
current and its voltage drop. If you have less than 12V, the performance can be reduced a lot
Measure the consumption. If you don't have around 500 mA, you need to calibrate the reader to its
environment (see the calibration section).
Try to move the reader and/or change its orientation.

TIPS: You can use a 12V battery to power the reader and it will be easier to move it.
CAUTION: All detection tests need to be done with the embedded ?CP' LED.
If you move the reader and get better performance on a new place, it means the initial place was not
compliant for long range 125 kHz readers.

Ground fixation
200

25

20

10

25

25

© STId 2005 ? NI002A06

25

P. 5 / 6

Installation procedure

Hands free reader: MLT - R11 Variant / ISO2 & Wiegand
Tag using
Present the tag in front of the reader, perpendicularly, and approach it slowly until the tag is detected.
It is not necessary to agitate the tag.
Caution: If the tag is inclined, the reading distance will be reduced.

% distance :

30°
60%

25°
80%

0°
100%

Readers installation examples

NO

YES

Ground loop
Ground loop

© STId 2005 ? NI002A06

P. 6 / 6



Lecteur
MLT
Lecteur Mains Libres
125 kHz

?

Identification & Sécurité

? Contrôle d'accès mains libres
Le MLT est un lecteur de proximité Mains-libres spécialement
étudié pour l'ensemble de vos applications de contrôle
d'accès et d'identification de
piétons ou de véhicules aussi
bien en environnement intérieur
qu'extérieur.

?? Bénéfices
Performances
Le MLT permet des distances de lecture
exceptionnelles pouvant dépasser 80 cm**, offrant
ainsi une grande polyvalence dans l'usage du produit
et un large choix d'applications possibles.
Facilité d'installation

Caractéristiques

Son installation est très facile à réaliser grâce à sa
platine de fixation au sol et son antenne coulissante sur
pied pour un réglage en hauteur personnalisé selon
vos applications.
Intégration

?

Fréquence : 125 kHz

?

Mode : Lecture seule

?

Distance de lecture** : Jusqu'à 80 cm

Le MLT est immédiatement compatible avec la majorité
des systèmes existants grâce au large choix de
protocoles et d'interfaces de communication.

?

Cadre antenne : 83 x 53 cm (pied: 1,50m)

Résistance

?

Interfaces : TTL, RS232, RS485

?

Protocoles : ISO2/Wiegand, série

?

Alimentation : 12VDC

?

Protection : IP 65

?

Comptabilité puces : EM

?

Technologie

Innovation, Passion, Solution

Le MLT est conçu pour résister aux environnements
tant intérieurs qu'extérieurs grâce à sa mécanique inox
et aluminium étanche.

Le MLT peut être utilisé
avec une large gamme
d'identifiants sans contact

Lecteur
MLT
Lecteur Mains Libres
125 kHz

?

Applications
- Contrôle d'accès mains libres pour piétons
- Contrôle d'accès mains libres pour véhicules
- Traçabilité

Cotes mécaniques
Dimensions

? Caractéristiques
Fréquence porteuse :
125 kHz
Mode :
Lecture seule
Distance de lecture** :
Jusqu'à 70 / 80 cm avec un badge type CCT.
Interfaces de communication:
Sortie TTL à collecteur ouvert - Protocole: ISO2 (Data/clock);
Wiegand; RS485 (2 ?ls); RS 232
(nous consulter pour les variantes et spéci?cations détaillées).

Connectique :
Bornier 6 points à leviers
Consommation :
500 mA - 900 mA (selon réglage)
Alimentation :
12 VDC (12-15V)
Matériaux :
Antenne en Inox, boîtier aluminium étanche
Dimensions du cadre :
Dimensions du socle et position
des perçages

83 x 53 cm / Diam. Tube : 2 cm / Pied inox : 40 x 40 mm
Dimensions du boîtier électronique :
171 x 121 x 55 mm
Températures de fonctionnement :
- 20°C à + 70°C - Usage intérieur / extérieur. IP 65
Fixation :
Platine de ?xation au sol dim. 20x20 cm.

**Attention : informations sur les distances de communication : mesurées au centre de l'antenne, dépendant du type et
de la taille de l'identi?ant, de l'environnement d'installation du lecteur, de la tension d'alimentation.

? Lecteurs

LXM

de proximité 125 kHz
LXE

LXS

? Mains-Libres

AVX

LCI

Innovation, Passion, Solution

L50/51

MLT

Siège Social
ZAC des pradeaux
Bd Salvador Allende
13850 Greasque, France
Tel. +33 (0)4.42.12.60.60
Fax. +33 (0)4.42.12.60.61
info@stid.com / www.stid.com
Agence Paris IdF
Immeuble Expansion 10 000
28, rue de la Redoute
92260 Fontenay-aux-Roses, France
Tel. +33 (0)1.43.50.11.43
Fax. +33 (0)1.43.50.27.37
info@stid.com / www.stid.com

V1.02 - FR

Code Article :
P/N (TTL) : MLT-R11-A/Em1-xx/5
P/N (RS232) : MLT-R12-A/Em1-xx/5
P/N (RS485) : MLT-R13-A/Em1-xx/5
xx :
Variante protocole
